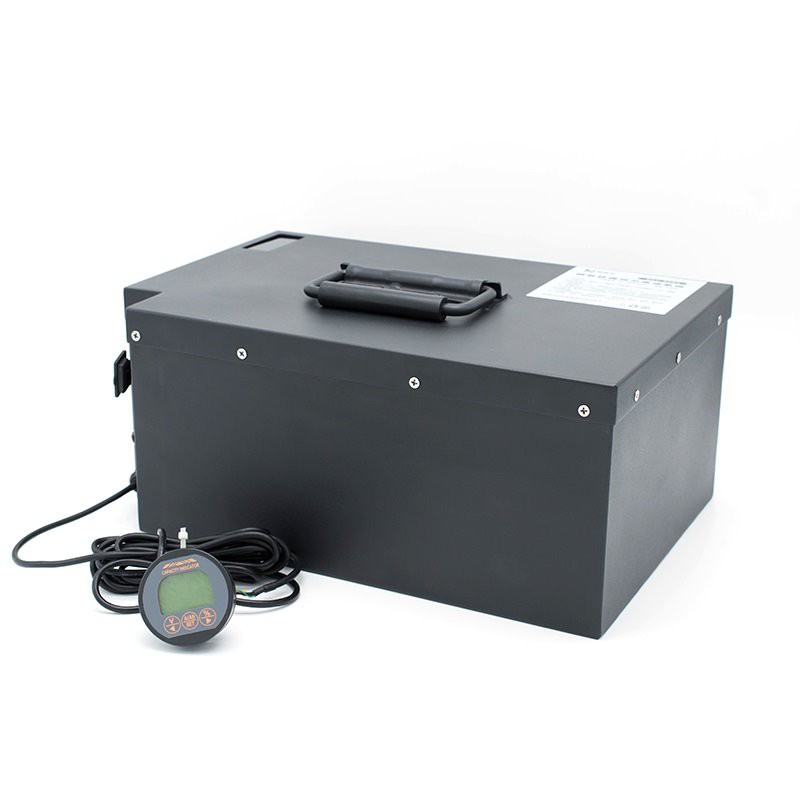

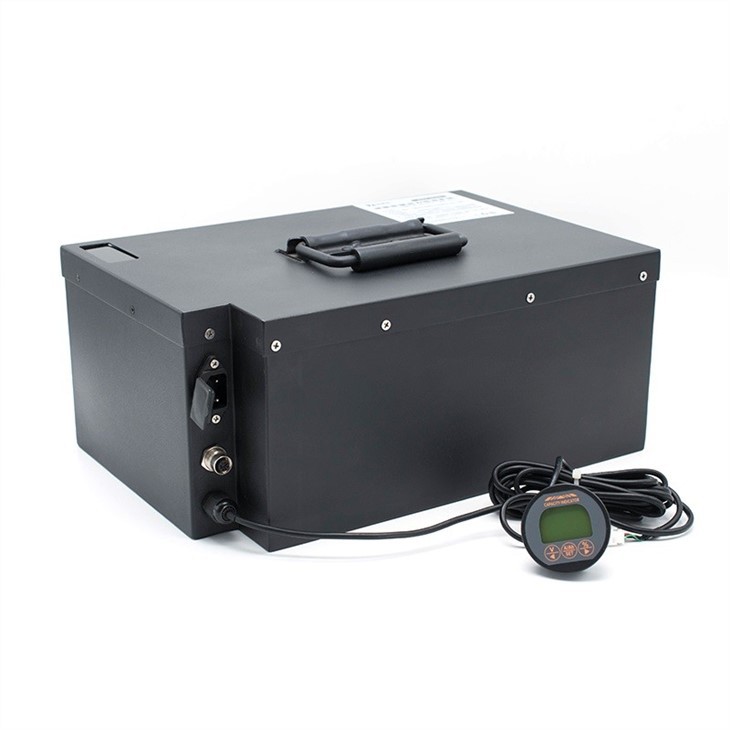

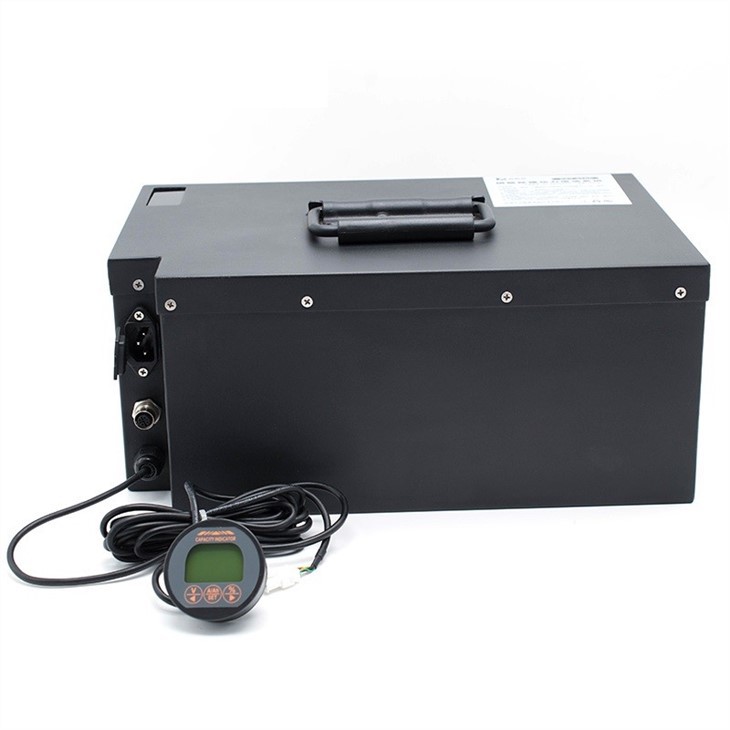

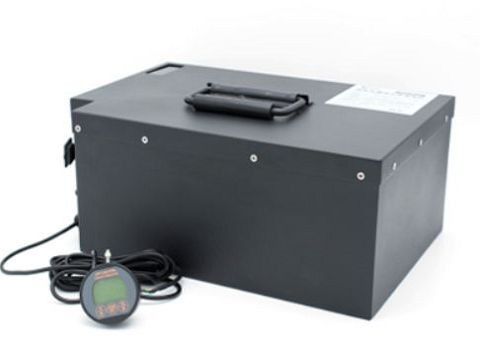

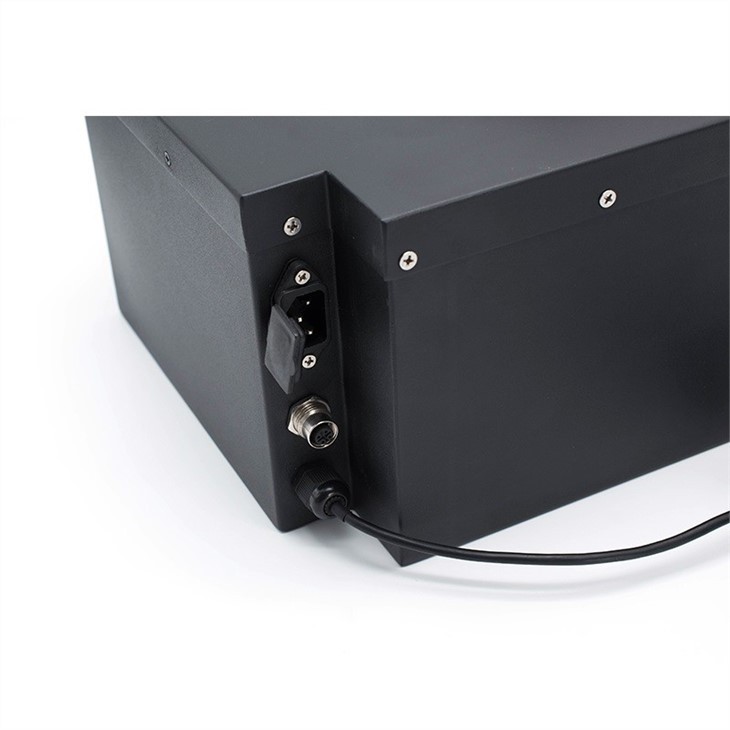

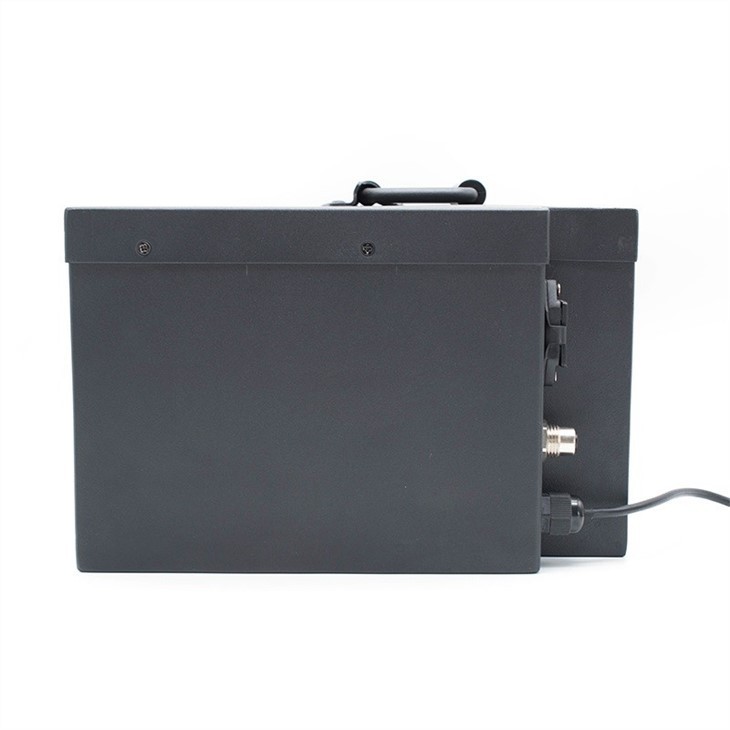

60V30Ah Floor Sweeper Battery Pack
60V 30Ah Floor Sweeper Battery Pack
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Create a tailor-made energy-solution for you
(Reliable Batteries for Floor Sweeper)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight | ||
Length | Width | Height | ||||
1P30S | INCLUDED | IP65 | 23in (583) | 16.7in (425) | 10.4in (265) | 105.6 (48) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
64V | 30AH | YES | 1.92KWH | 1C | 1C | <1% per Month |
AT THE HEART OF OPERATIONS

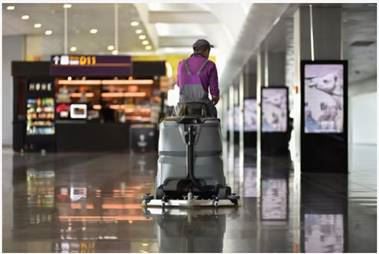

LiFePO4 batteries are making their way into the floor cleaning market because of the many benefits they offer. Lithium batteries offer up to 8500 cycles of use as oppose to traditional sealed lead-acid batteries that offer only 400 cycles. This means you won’t need to replace the batteries nearly as often. Lithium batteries also provide a constant current of discharge and can be fully recharged in only one hour. Lithium floor machine batteries are designed to ensure floor cleaning equipment operates with full power throughout the shift while requiring zero maintenance. Adding water or cleaning acid residue is never required. Better yet, lithium batteries are super lightweight which allows for easy installation and replacement!
LITHIUM-ION CELLS
Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

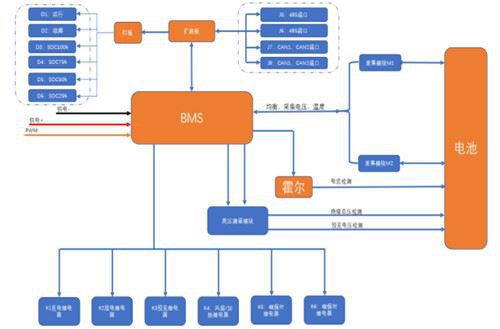

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: • Accurate battery discharge indicator • Device Error code (DEC) reporting • Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|
Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.
|
|
Experience the Difference
Electrification is coming to the construction industry in the form of battery operated Tractors, Embrace a zero-emission future!
PRODUCTIVITY There are a few reasons LiFePO4 batteries can, and do, provide increased runtime over lead-acid batteries. 1. The main reason is that a lithium battery provides the full rated capacity, regardless of the rate of discharge. Lead-acid batteries are typically rated at the 5-hour or 20-hour rate, which are based on constant current, laboratory-tested, and low rates of discharge. For example, a 200Ah (based on the 20-hr rate) lead-acid battery will provide 200Ah if it is run at a constant current of 10A for 20 hours. However, that same battery may provide only 135Ah if it is run at a constant current of 75A for 1.8 hours. |  |
COMBINE Service
1. Your inquiry will be replied within 12 hours.
2. We will track the shipping status so our customers can receive products in time and safely.
3. Protect your ideas of design and all your private information.
4. Quality Guarantee
5. Customized design OEM and ODM are available
6. Shipment all available by Air / Express (door to door) / Vessel
More about US
COMBINE is specializing in the development and manufacture of "smart batteries" by integrating the latest cell technology, active safety systems and innovative enclosure designs.
COMBINE devoted to promote sustainable development and the use of alternative energies through the development of innovative products.
COMBINE seek to develop long term customer partnership and strive to develop superior battery solutions for our customers that will deliver
Safety and performance
Reliability
Functionality
Commercial value
Increased runtime, means increased productivity!
