Hybrid Industrial Mobile Energy Storage System
What is Industrial Mobile Energy Storage System?
Industrial Mobile Energy Storage System is the implementation of battery energy storage systems (BESS) within industrial sectors . These systems are capable of generating renewable energy, which can then be safely stored for future use.When installed on an industrial scale, battery energy storage has the potential to transform sectors and reduce our collective reliance on fossil fuels.
Why Choose Us
Quality assurance
Out of passion for green energy, United has set up a professional renewable energy team with more than 10 years of experience in the rechargeable lithium-iron battery pack industry.
Good service
You can be sure that you are getting the most competitive battery packs on the market backed by top level customer service.
Reasonable price
The price is reasonable and will bring you different surprises.
Fast delivery
The delivery speed is fast, and the delivery will be sorted out for you as soon as the order is placed.

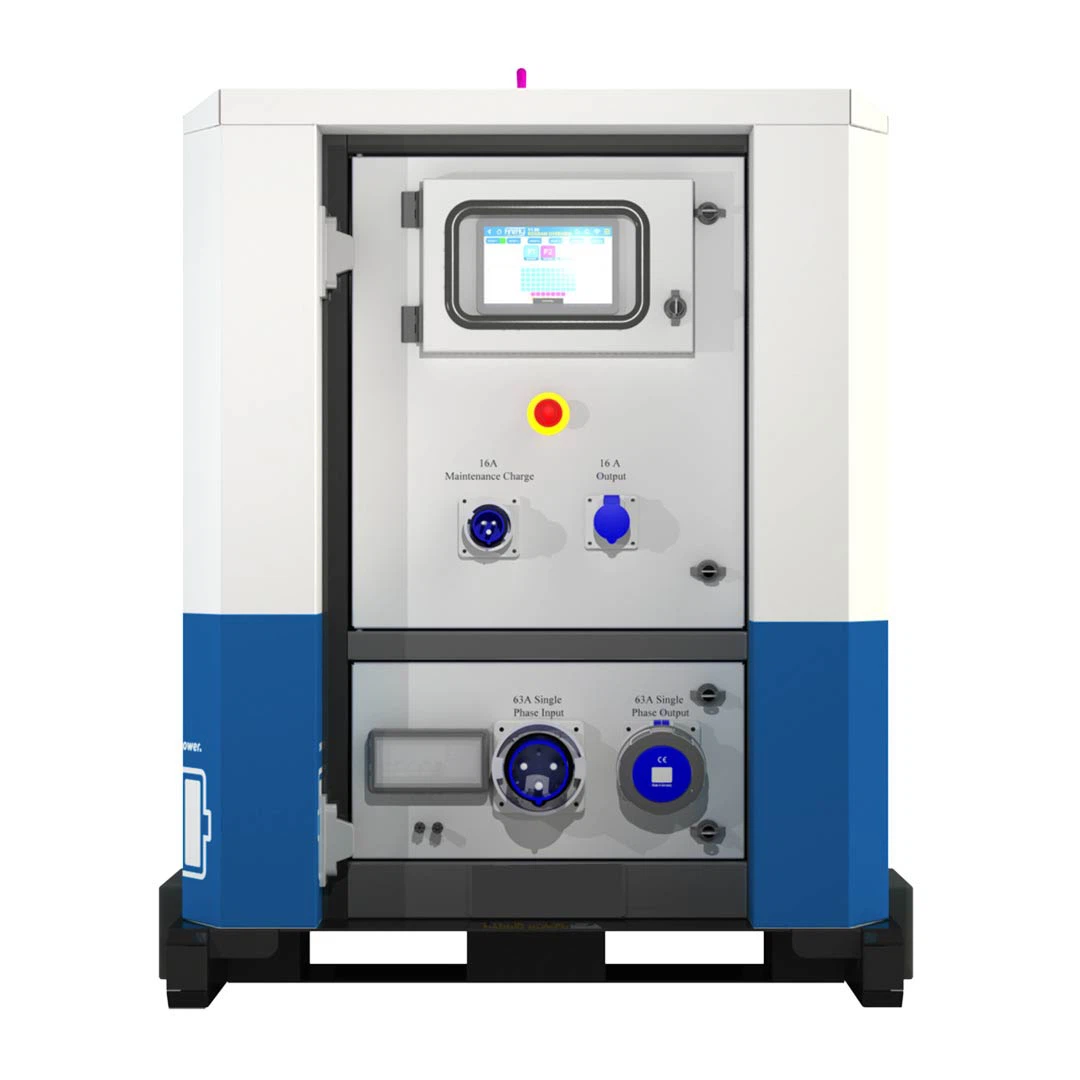

Hybrid Industrial Mobile Energy Storage System
50kwh Hybrid Mobile Power System
Industrial Mobile Energy Storage System
48V 150Ah Removable Lithium-ion Energy Storage Battery Pack
48V 300Ah Lithium-ion Energy Storage Battery Pack
Lithium Iron Energy Storage Battery System
448V160Ah Energy Storage Battery Pack ESS Lithium-ion Battery System
48V280Ah Energy Storage Battery Pack
The Advantages of Industrial Energy Storage to Business
At its core, an industrial energy storage system can revolutionise the way that a company uses and stores energy. In an increasingly competitive world and with growing restrictions on the use of fossil fuels, industrial energy storage is a solution that many businesses have already turned to. In a nutshell, some of the benefits include:
Power Resilience
An on-site industrial energy storage system provides your company with an uninterruptible power supply (UPS), providing enhanced power resilience. This keeps you operational and reduces the downtime suffered from power outages and other grid-related issues.
Money Saving
Though the cost of installation is high, industrial energy storage offers long-term saving opportunities via peak shaving and load shifting.
On-site Generation
A huge benefit of industrial energy storage is that it significantly reduces your company's dependence on the grid by increasing your levels of on-site generation. Some companies are even able to source the vast majority of their power needs on-site today.
Buffering Large Loads
Industrial energy storage solutions recognise that more applications need to feed into the on-site system, particularly electric vehicles. A comprehensive industrial energy storage system is capable of buffering large loads cheaply and efficiently.
Mobile Battery Energy Storage Systems and the Role
In the ongoing quest for cleaner, more sustainable alternatives to traditional diesel generators, the synergy between mobile Battery Energy Storage Systems (BESS) and local microgrids emerges as a transformative solution. This innovative approach not only addresses the environmental challenges posed by conventional generators but also revolutionizes the landscape of temporary electricity for diverse industries.
Unlocking the Power of Local Microgrids
Local microgrids, fortified by renewable energy sources such as solar panels, serve as the backbone of this green revolution. By tapping into the abundance of sunlight, wind, or other sustainable resources, these microgrids provide a consistent and eco-friendly power supply. Mobile BESS products seamlessly integrate with these microgrids, creating a dynamic partnership that harnesses the benefits of renewable energy and minimizes reliance on non-renewable sources.
A Clean Energy Alliance
The alliance between mobile BESS and local microgrids allows for the efficient storage of low-cost off-peak grid power during periods of renewable energy abundance. This stored energy becomes a reservoir of clean electricity that can be dispatched on-demand, offering operators a reliable, emissions-free, and quiet power source for extended durations. This dynamic duo effectively mitigates the detrimental effects of noise, fuel, and maintenance costs associated with traditional generators.
Extended Durability, Reduced Environmental Impact
One of the remarkable aspects of mobile BESS and local microgrid collaboration is the extended duration for which they can provide sustainable electricity without the need for frequent recharging. This not only ensures operational flexibility for industries such as construction, live events, film, utilities, and disaster relief but also significantly reduces the millions of tons of greenhouse gas emissions annually attributed to diesel generators.
Paving the Way for Sustainable Practices
As the global focus on environmental sustainability intensifies, the integration of mobile BESS with local microgrids emerges as a beacon of progress. This collaborative solution not only meets the immediate needs of various industries but also contributes to a broader transition towards cleaner energy practices. Industry and regulatory pressure for eco-friendly alternatives finds a compelling answer in this innovative pairing.
A BESS collects energy from renewable energy sources, such as wind and or solar panels or from the electricity network and stores the energy using battery storage technology. The batteries discharge to release energy when necessary, such as during peak demands, power outages, or grid balancing. In addition to the batteries, BESS requires additional components that allow the system to be connected to an electrical network.
A bidirectional inverter or power conversion system (PCS) is the main device that converts power between the DC battery terminals and the AC line voltage and allows for power to flow both ways to charge and discharge the battery. The other primary element of a BESS is an energy management system (EMS) to coordinate the control and operation of all components in the system.
The two primary standards relating to BESSs are: 33:45 IFC 2021 and NFPA 855.
"I think they're excellent and they are evolving as we get smarter," Trudeau says. While compliance isn't necessary right now, both California and New York, which make up 65% of the energy market, require compliance with these codes, so most manufacturers follow them, he notes.
"As a user you need to be aware of what's in these codes, so that when something gets installed in your facility, you know it's compliant because compliance with these codes is what's going to keep you safe," he says.
The standards contain four key components:
Spaced minimum of three feet from other arrays and walls
Follow UL 9540
Maximum of 50 kWh per unit
Maximum of 5,600 kWh in aggregate or fire area
While it is possible a setup may not comply with all these rules because of mitigating factors, the design should then be lab-tested so a fire safety official can make a determination about its efficacy.
Lithium-Ion (Li-Ion)
Lithium iron phosphate (LFP) and lithium nickel manganese cobalt oxide (NMC) are the two most common and popular Li-ion battery chemistries for battery energy applications. Li-ion batteries are small, lightweight and have a high capacity and energy density, requiring minimal maintenance and provide a long lifespan. Lithium-ion batteries can also be rapidly charged and have a low self-discharge rate.
Lead-Acid (PbA)
Lead-Acid batteries are well-proven within the automotive industry and behind-the-meter grid and UPS applications. PbA batteries are widely available, low cost, widely recyclable, and can perform effectively at both hot and cold temperatures. However, due to advances in Li-ion battery technology, lead-acid batteries have a low energy density and are slow to charge.
Sodium-Sulphur (Na-S)
A sodium-sulphur battery is a molten salt-based device. Na-S batteries have several advantages, including high energy and power density, a long lifespan, and reliable operation under extreme 300 to 350 degrees Celsius temperatures. However, this battery technology is primarily suited to large-scale stationary grid storage applications due to high operating temperatures and corrosion sensitivity. Sodium is also a dangerous component because it is highly flammable and potentially explosive.
Flow Batteries
Flow batteries store energy in liquid electrolyte solutions, unlike traditional rechargeable battery solid electrode material. The vanadium redox battery (VRB) is the most prevalent flow battery type and is suitable for longer durations of up to 8 hours or where an extended lifetime is required. Despite their low energy capacity and charge/discharge rate, flow batteries respond quickly and reduce fire risk due to the non-flammable electrolytes used.
Zinc Bromine, cerium-zinc
A zinc-bromine battery is a rechargeable battery that uses the reaction between bromine and zinc metal to produce an electric current with an electrolyte composed of an aqueous solution of zinc bromide. The zinc-bromine battery was developed as an alternative to lithium-ion batteries for stationary power applications from grid-scale to domestic scale. The water-based electrolyte in Zinc-bromine batteries makes the battery system less prone to fire and overheating than lithium-ion batteries.
What Services Can Battery Storage Provide?
Because battery storage is flexible - Meaning it can spin up and ramp up quickly - It can provide a wide range of services to keep the grid in balance. It can also enable your organization to be more flexible in its energy usage and generate revenue from a variety of value streams. Below we describe the main services that battery storage provides to three stakeholder groups: Energy markets, utilities, and customers - Per RMI's framework introduced in The Economics of Battery Energy Storage.
Energy market services - Battery energy storage systems, because of their fast response capabilities, can provide various energy flexibility services to the grid while unlocking revenue opportunities for organizations. Grid operators and utilities are increasingly monetizing the type of energy flexibility they need to keep the grid in balance, through resources like ancillary service programs - I.e., services that help maintain a reliable electrical grid. Other services that support the grid include energy arbitrage, voltage support, and black start capabilities.
Utility services - Battery energy storage systems can also substitute for the need for expensive grid infrastructure upgrades, through services like distribution and transmission investment deferral, congestion relief, and providing for local resource adequacy.
Customer services - Behind-the-meter battery energy storage systems (i.e., systems installed at an organization's premises for use on-site) can help energy users manage when and how they use power at their facilities. This flexible energy usage enables organizations to reduce their energy bills and, when applicable, maximize their consumption of renewable energy when solar and battery storage are paired. There's also a growing need for on-site backup power, which batteries - When paired with backup controls - Can provide.
Battery Energy Storage System As A Green Solution
Battery energy storage systems have had a positive impact on green technology, providing new opportunities for cost savings and environmental sustainability. Battery energy storage systems can provide backup power during outages, reducing the need for costly generators. They also increase renewable energy use by storing excess energy generated from renewable sources and releasing it when needed which reduces overall electricity bills as well as emissions produced from traditional sources of energy. Battery energy storage systems can also help:
Stabilize power grids
Improve grid reliability
Provide ancillary services such as frequency regulation and voltage support
By providing these services, Battery energy storage systems enable more efficient use of existing infrastructure, allowing for a greener future.
Battery energy storage systems have the potential to reduce energy costs for businesses and consumers alike by helping them store and use energy more efficiently. This allows businesses to take full advantage of available renewable sources, while consumers can benefit from lower electricity bills. In short, Battery energy storage systems are an important part of green technology and their presence will likely continue to grow as more people become aware of the benefits they provide.
Our Factory
Here at Combine New Energy, green energy is more than just a trend. We are devoted to creating a new standard in energy storage. Our goal is to enable the widespread deployment of this cutting-edge technology to make green, renewable energy available for everyone. Combine LiFePO4 battery packs are made from 100% safe, nontoxic, renewable energy that can be charged and discharged repeatedly. Our packs are built to last for years. You can be sure that you are getting the most competitive battery packs on the market backed by top level customer service.
