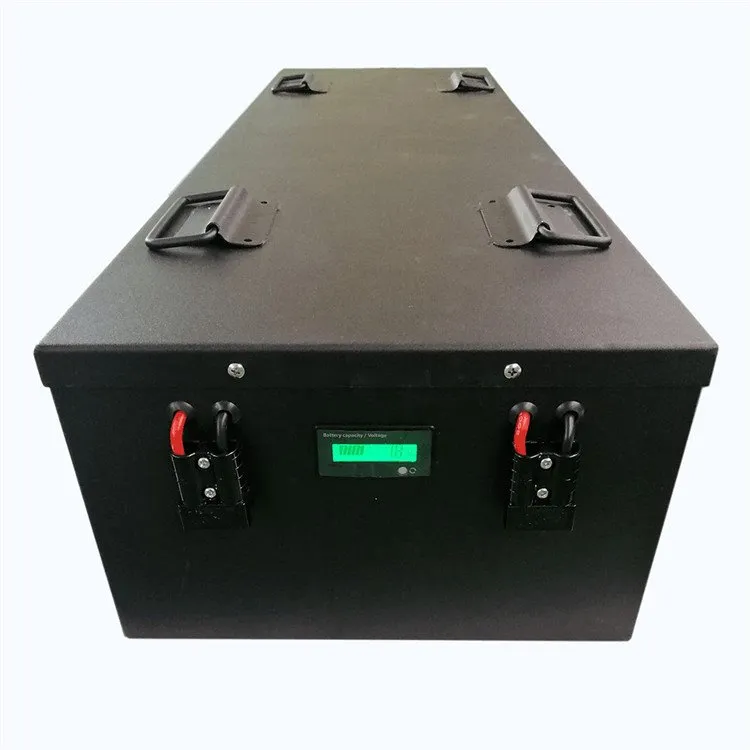

48V 200Ah Lithium Golf Car Battery
48V 200Ah Lithium Golf Car Battery
New Energy, New Solutions!
|
|
|
|
No More Water Maintenance Simplify your operations by no longer needing to manage watering schedules for your batteries. This is not only a huge time saver, but allows operators to focus on moving product rather than maintaining battery maintenance schedules. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |

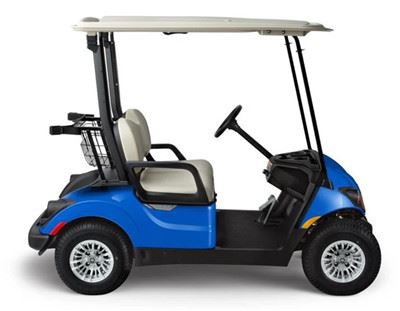

Trusted by the Golf Cart Community
(Lithium-ion Battery Pack designed for use in Golf Cart)

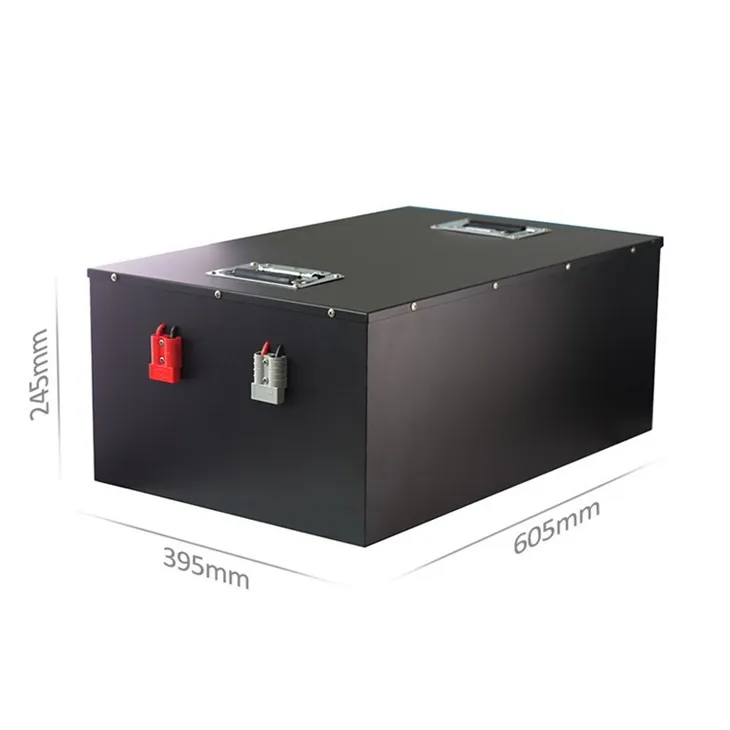

PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight Lbs (kg) | ||
Length | Width | Height | ||||
2P16S | INCLUDED | IP67 | 23.8 (605) | 15.5 (395) | 9.6 (245) | 215 (98) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
51.2V | 200AH | YES | 10.24KWH | 1C | 1C | <1% per Month |
SWITCH TO A HIGHER-PERFORMING AND LONGER-LASTING
Golf Car Battery
The core and key component of every golf cart is its battery, and choosing the right type of battery is crucial to ensuring that your golf cart is always in top shape and performs to the very best of its ability. With a lithium golf cart battery, you are guaranteed to get the absolute best out of your golf cart. Not only does a lithium battery weight considerably less than the standard lead-acid battery, but it also has a much faster charging time, a longer life, more mileage, more charging cycles, and is virtually maintenance free. Lithium batteries are also "green" energy, meaning they are eco-friendly and do not give off any harmful fumes when your cart is charging. Multiple built-in safety measures will protect the cart, the battery, and you from any dangerous accidents that are more likely to occur with a lead-acid battery.
If you have any questions regarding our golf cart battery lithium or choosing which type of battery is right for you, feel free to contact us !
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

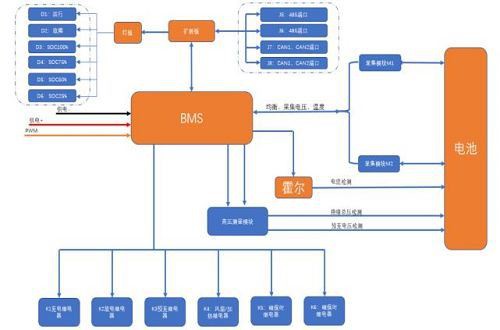

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: ● Accurate battery discharge indicator ● Device Error code (DEC) reporting ● Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|
Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly
|
|
|
|
Experience the Difference
Learn why customers choose to run their Golf Cars using lithium-ion from Combine Tech.
Capacity & Cycle Life One of the most important benefits of Combine’s choice of lithium is the dramatic increase in energy density over current lead-acid battery solutions. Combine uses Lithium-Iron-Phosphate (LiFePO4) which has a specific energy of ~110 watt-hours per kilogram, compared to lead-acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings. Speed & Efficiency Combine’s lithium batteries are fast. They can be fast charged completely and can handle ultra-fast charging up to 1C (a full charge in 1hour). Lead-acid can only be fast-charged up to 80% after which charging current drops dramatically. |  |
