Deep Cycle 24V Lithium RV Battery

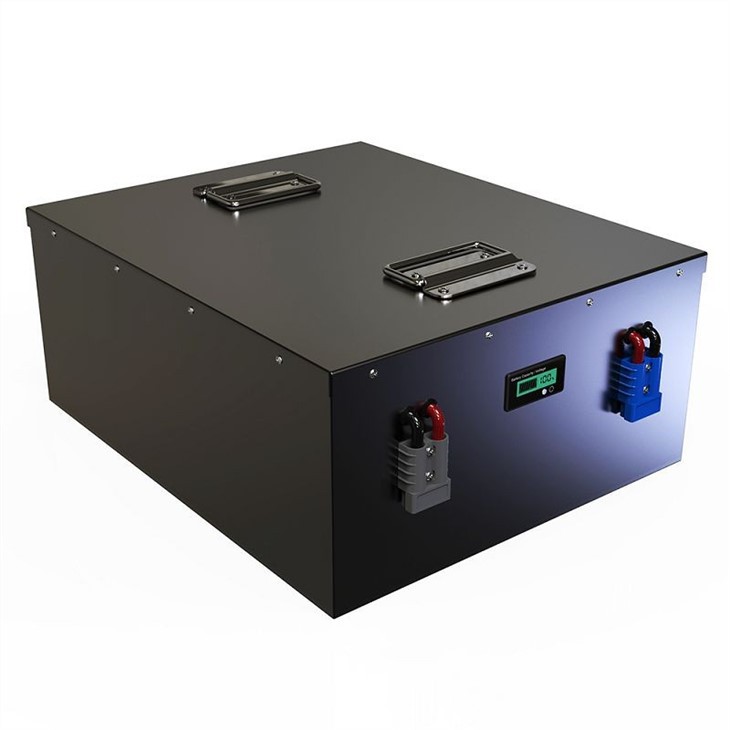

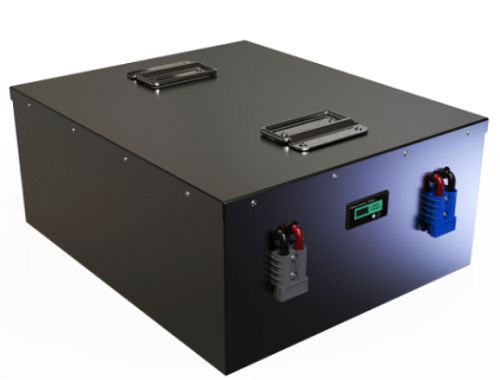

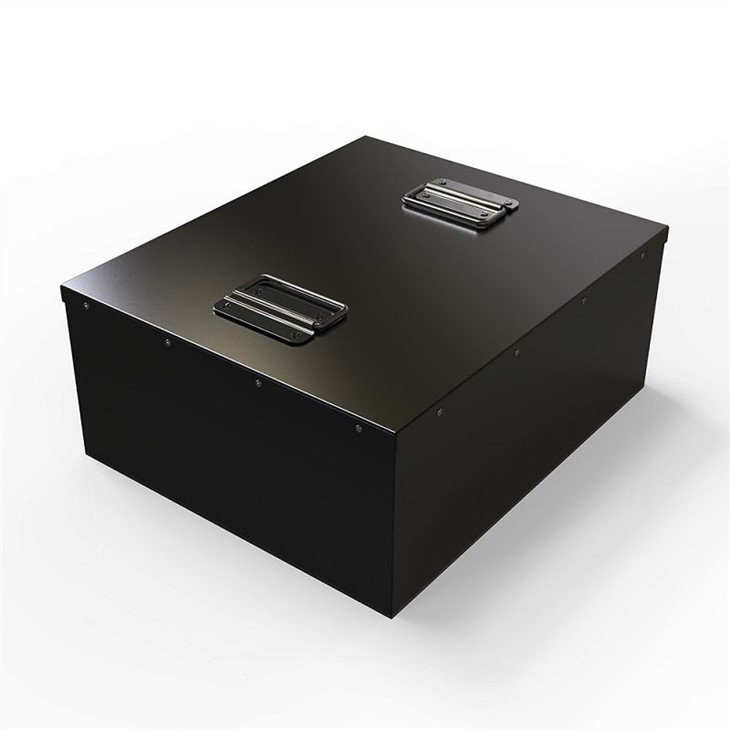

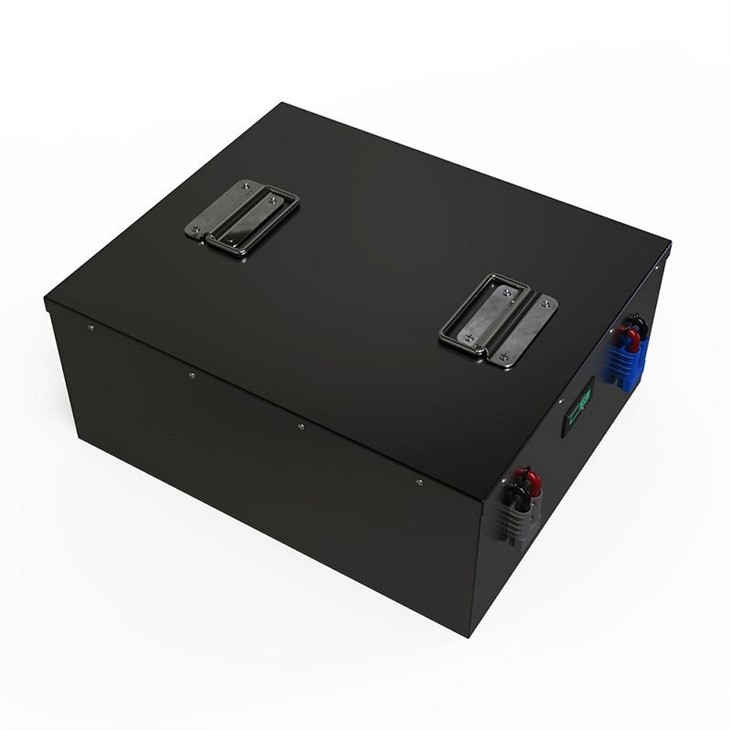

Deep Cycle 24V200Ah Lithium RV Battery
(Reliable Batteries for Recreational Vehicle)
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Battery Testing & Quality Control
(Battery Powered Electric RV)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight | ||
Length | Width | Height | ||||
1P8S | INCLUDED | IP67 | 14.7in (375) | 17.7in (450) | 7.28in (185) | 105.6 (48) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
25.6V | 200AH | YES | 5.12KWH | 1C | 1C | <1% per Month |
WHY YOU NEED TO INSTALL BATTERY IN YOUR RV
It is necessary to have a battery in your RV because you can not run different motorhome appliances if there is no deep cycle battery installed in your RV. Installation of a battery in your RV will provide you a better experience during your long adventure.
You can not start your engine without a starting battery because every type of engine requires an electric spark to start its working.
Different lights present in the RV also operated with the help of a battery and braking of electrical wheels in the RV system also work through battery so, that is why you need to install the battery in your RV.
LITHIUM-ION CELLS
Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.
| ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

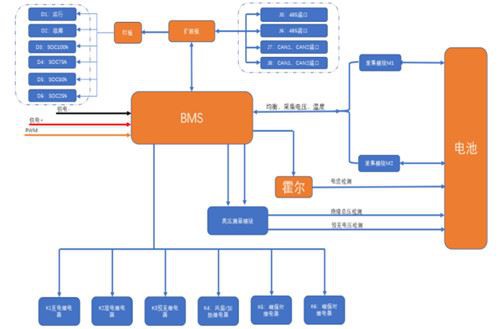

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
| FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: • Accurate battery discharge indicator • Device Error code (DEC) reporting • Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|

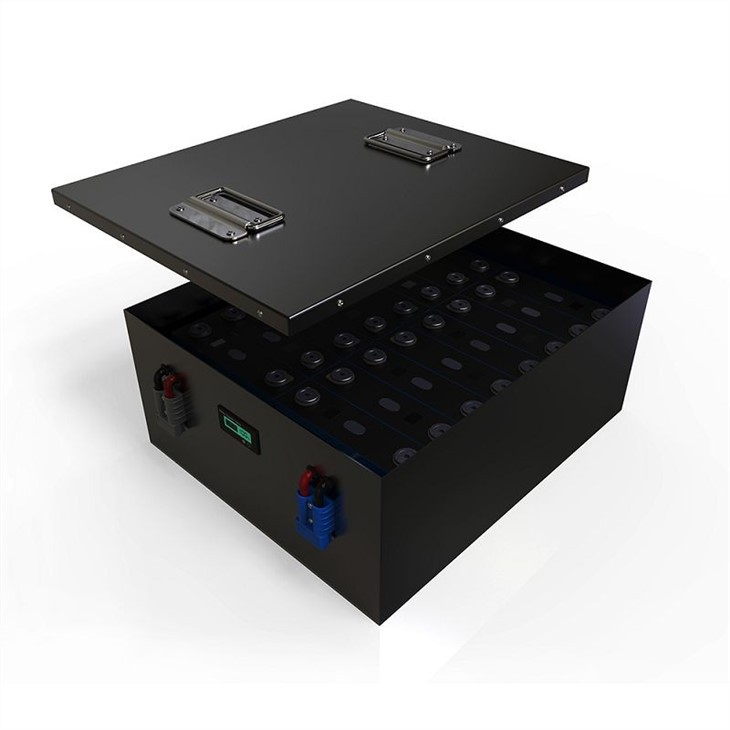

Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.
|
|
Experience the Difference
Electrification is coming to the construction industry in the form of battery operated Tractors, Embrace a zero-emission future!

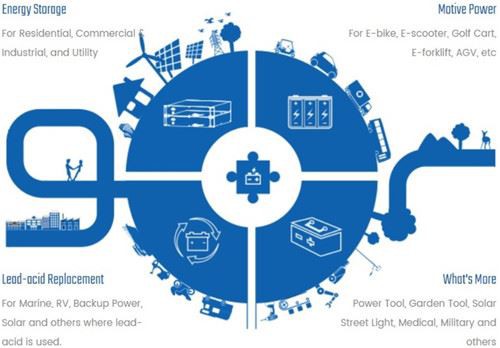

How to Custom LifePo4 Battery Cell / Battery Packs 1. Application: EV(Electric vehicle), E-bike, E-motorbike, Rickshaw, Yacht, UPS System, Energy storage system, Mobile Tower Station, Industrial Vehicles, etc. 2. Decide the Working Current and Peak Current Working Current/ Constant Current means the current the device draws in general, if you don’t have an engineer to know about it, let us know the watt of the device. Peak Current also called Max current, which is mostly used to describe current that may happen in seconds when device just start and may have a high drain current requirement (normally seen if there is motor inside) |  |
3. Decide Working hours of the Battery
It’s really important that you let us know the capacity of the battery you want to make.
Working hours are very important as that will decide the battery pricing, as well as battery size.
4. Decide Size Requirement
In some cases that you might have already wanted the battery to be in-house, let us know what room is left for the battery
5. Choose Battery Casing
There are mainly 3 types of outer casing: PVC, Plastic casing, metal casing
6 Select Connector Type
Do You Need Two Batteries in an RV?
The number of batteries you need to power your RV depends on a number of things. If you have a smaller camper or a motorhome and intend to plug into an external power source while you're camping, then it may be acceptable to use only a 12v deep cycle battery to help provide power for starting the engine and powering important items.
If you intend to remain off-grid for a period of time while you're camping, it may be necessary to consider using two separate batteries for specific purposes. A starter battery, or cranking battery, is used solely for starting the engine.
Your deep cycle RV battery is designed to provide continuous power to a range of different electrical or electronic items within your camper. If you're camping off-grid and need to operate the TV or cell phone chargers or other electrical items, your deep cycle lead-acid battery provides the charge you need when you need it most.
