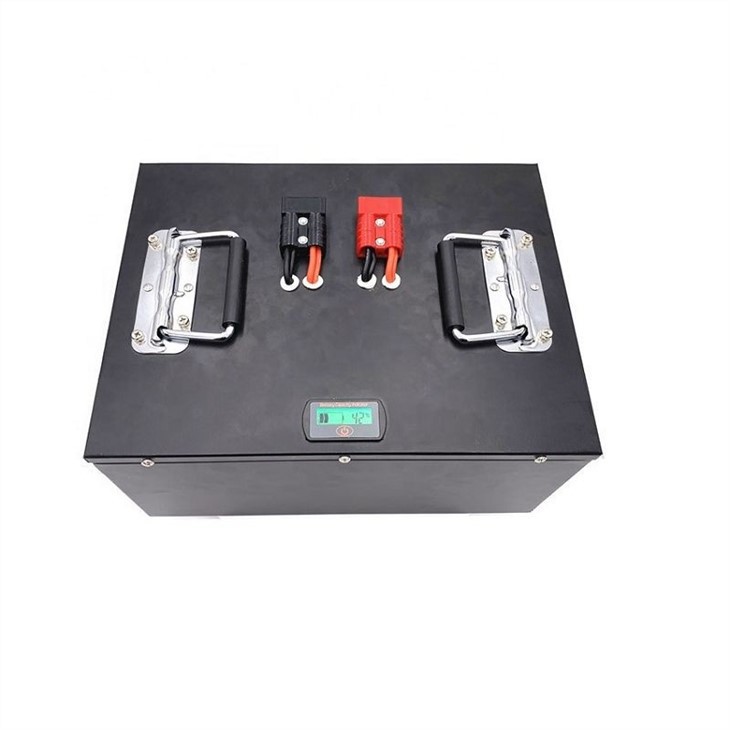

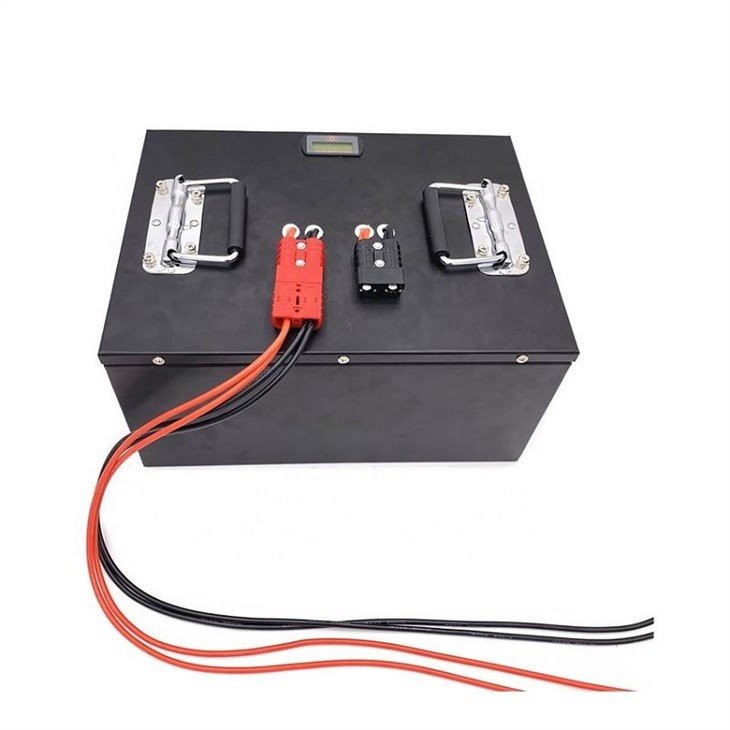

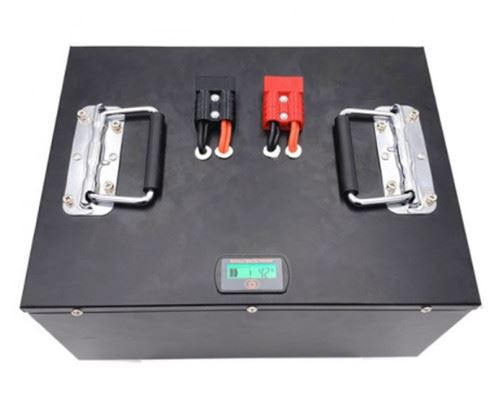

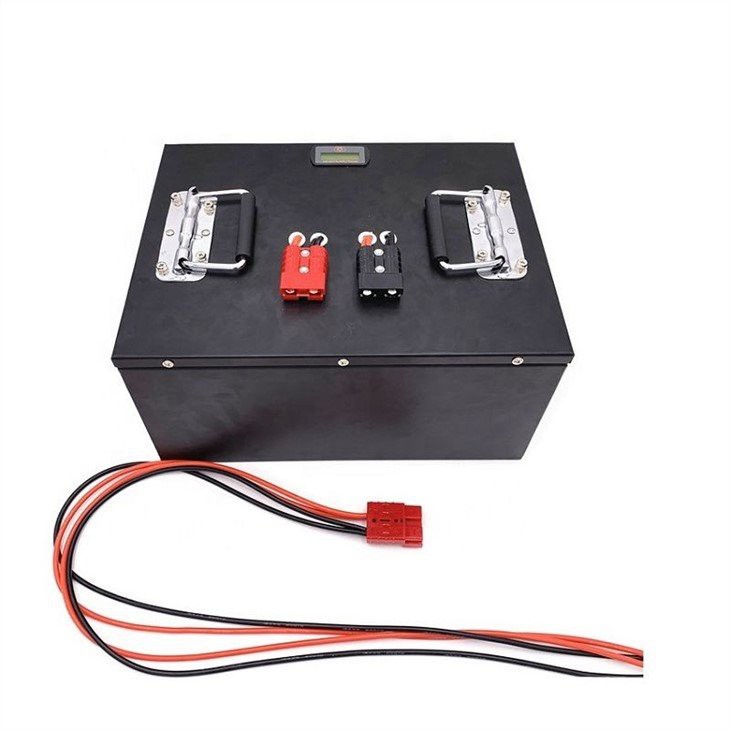

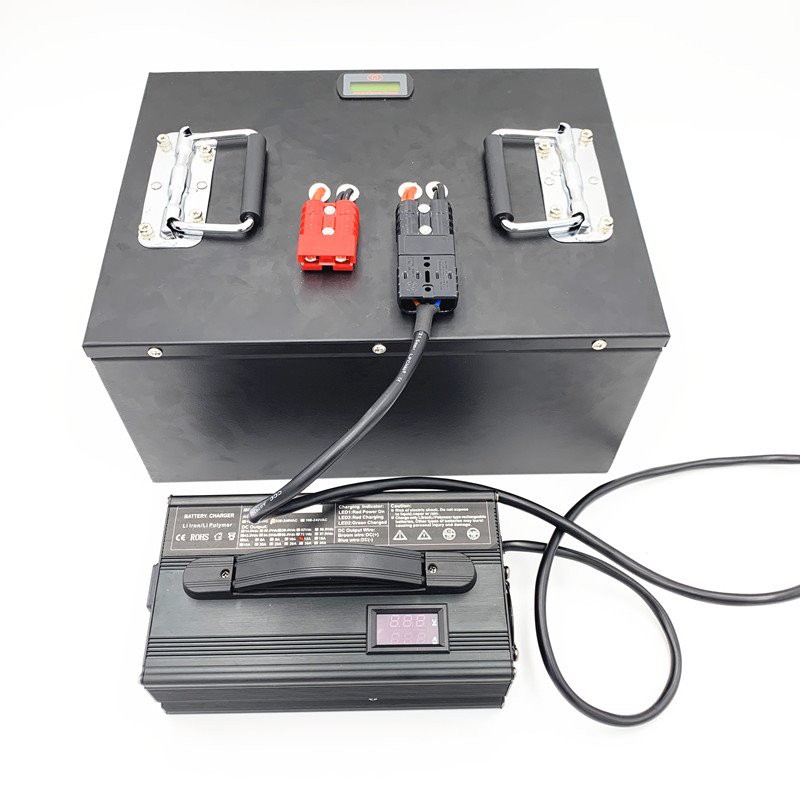

24V 60Ah Lithium Battery Pack For AGV
24V60Ah Lithium Battery Pack For AGV
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Create a tailor-made energy-solution for you
(Battery Powered Electric AGV)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight | ||
Length | Width | Height | ||||
2P8S | INCLUDED | IP65 | 12.2in (310) | 7.8in (200) | 7in (180) | 50.6 (23) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
25.6V | 60AH | YES | 1.536KWH | 0.5C | 0.5C | <1% per Month |

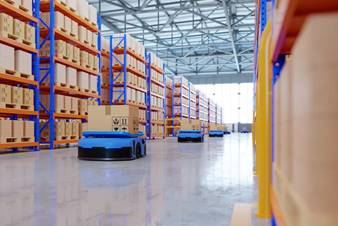

WHAT IS AN AUTOMATED GUIDED VEHICLE
AGVs have been around since the 1950s as a solution for moving heavy materials around large industrial buildings. The term AGV can apply to multiple types of vehicles, including carts, tuggers, forklifts, or unit load vehicles, and they are usually battery-powered.
Traditionally, AGVs were able to navigate through buildings by following marked lines on the floor, using wires that transmit radio signals or guide tape that the AGV follows with sensors.
The use of AGVs allows for warehouses to control costs and reduce unpredictability in material handling that need things moving at peak efficiency.
The fact that their path, acceleration, and deceleration can be controlled to maintain consistent, safe movement, along with automatic obstacle detection bumpers, makes AGVs safe in any work area.
LITHIUM-ION CELLS
Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

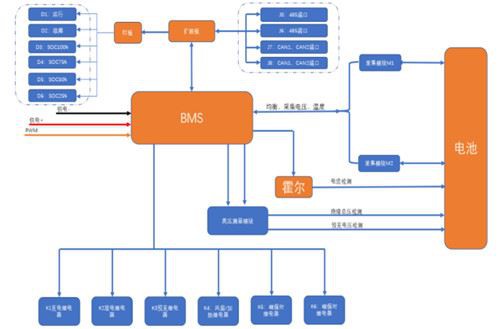

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: • Accurate battery discharge indicator • Device Error code (DEC) reporting • Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|
Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.
|
|
|
|
Experience the Difference
Electrification is coming to the construction industry in the form of battery operated Tractors, Embrace a zero-emission future!
Speed & Efficiency Combine’s lithium batteries are fast. They can be fast charged completely and can handle ultra-fast charging up to 1C (a full charge in 1hour). Lead-acid can only be fast-charged up to 80% after which charging current drops dramatically. Smart Battery Come! Sensitive Li-Ion batteries are usually equipped with an intelligent battery management system to maximize the operational reliability and life of these batteries. These batteries are used in intelligent applications in which they communicate with the end device or with the charging station and exchange information such as current, voltage, residual capacitance, temperatures, charging cycles, etc. |  |
By connecting a Bluetooth or WIFI module, there are a multitude of possibilities for manufacturers and end users. This integration of a Bluetooth or WIFI module in the battery (a key part of a battery-powered application) not only allows access to data and parameters in the battery but also to information in the end application and the charger.
COMBINE developed an app for Android mobile phone, with which all relevant information from the battery can be read, displayed and evaluated. As required, access to battery and end device is possible. Using this app, the live data from the battery can also be graphically displayed and logged. The app can be provided with access rights or restrictions. Software can be tailored for your specific application in order to adapt the advantages of the system in devices already available on the market.
