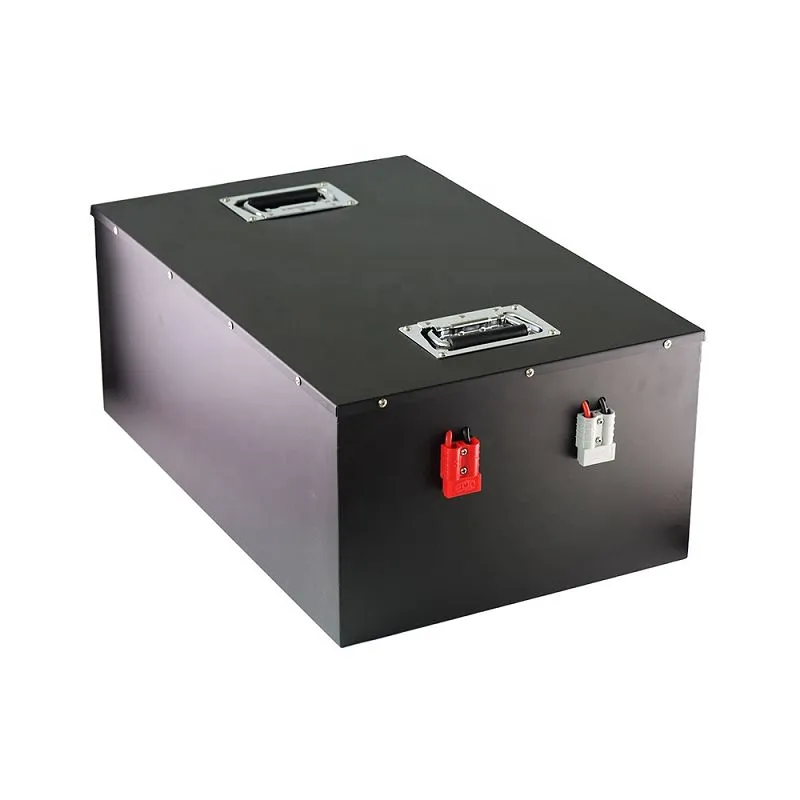

48V 200Ah AGV Robot Lithium Battery Pack
48V 200Ah AGV Robot Lithium Battery Pack
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Create a tailor-made energy-solution for you
(Battery Powered Electric AGV)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight | ||
Length | Width | Height | ||||
2P16S | INCLUDED | IP65 | 22.8in (580) | 15.7in (400) | 14.9in (380) | 211 (96) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
51.2V | 200AH | YES | 10.24KWH | 1C | 1C | <1% per Month |

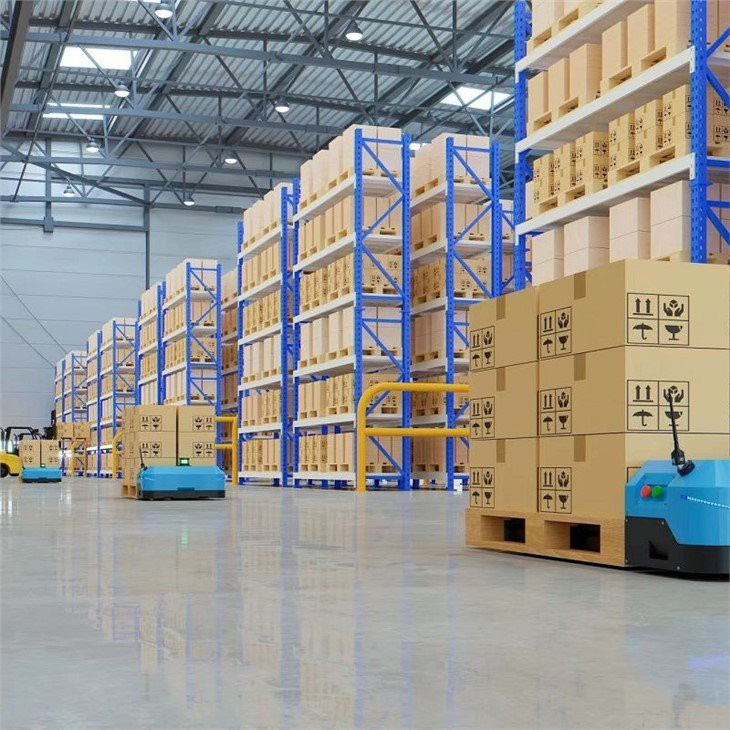

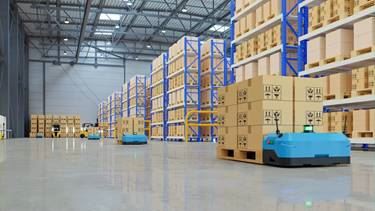

WHY PAIR LITHIUM-ION BATTERIES WITH AGVs
For operations trying to keep things moving 24 hours a day, having to stop to change out heavy lead acid batteries for charging is a huge time waster.
When companies choose to invest in AGVs, they are focused on improving
● Productivity in warehouses
● Reducing labor costs
● Increasing efficiency
Pairing AGVs with lithium-ion batteries is a great way to get the most out of the investment.
Lithium-ion batteries have a much higher charging rate, lower maintenance requirements, and higher energy density than lead acid batteries, which all point to increased output for the users.
LITHIUM-ION CELLS
Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |
 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: • Accurate battery discharge indicator • Device Error code (DEC) reporting • Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|
Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.
|
|
|
|
Experience the Difference
Electrification is coming to the construction industry in the form of battery operated Tractors, Embrace a zero-emission future!
Capacity & Cycle Life One of the most important benefits of Combine’s choice of lithium is the dramatic increase in energy density over current lead-acid battery solutions. Combine uses Lithium-Iron-Phosphate (LiFePO4) which has a specific energy of ~110 watt-hours per kilogram, compared to lead-acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings. Technologies and Experiences COMBINE possesses technologies and experiences to provide fully-integrated products & solutions for lithium-ion based green energy applications, including Medical Device, E-mobility, Energy Storage System, Defense & Security, Industrial Electronics and many other applications. |  |
The Right Batteries You Need
You need backup energy on hand for your projects, at a reasonable cost. Losing power on a warehouse scissor lift can cause delays in construction while waiting for a new battery, or lead to malfunctions at the wrong time. You want to make sure to have batteries readily available, long-lasting, and on hand.
When you have a battery-powered scissor lift, you want to make sure you have the right energy source for your machine. Your work platform has to hold steady in the sky, or while hugging a skyscraper. Dead scissor lifts mean that the work has to be delayed, for safety. Construction also runs on tight deadlines, with how many crews work in the same city and have to follow regulation.
Combine New Energy Technology Co.,Ltd, a company specialized in the design engineering machinery lithium iron battery. Energy conservation and emission reduction is the trend of the future, how to make the machine more efficient and environmentally operation, It therefore opted to produce Lifepo4 Battery in place of the more common lead-acid batteries.
In addition to the obvious benefits to the environment, this choice of energy supply compared with a lead-acid battery also has other advantages. They include:
● no periodic maintenance
● twice the range
● fast charging that allows partial charging during use
● a three times lighter battery weight (which significantly affects the total weight of the platform)
● lithium battery lifespan three times longer
● no gas emissions during charging
Our lift battery prices are suited to your various budgets. Our experts can recommend the perfect fit!
