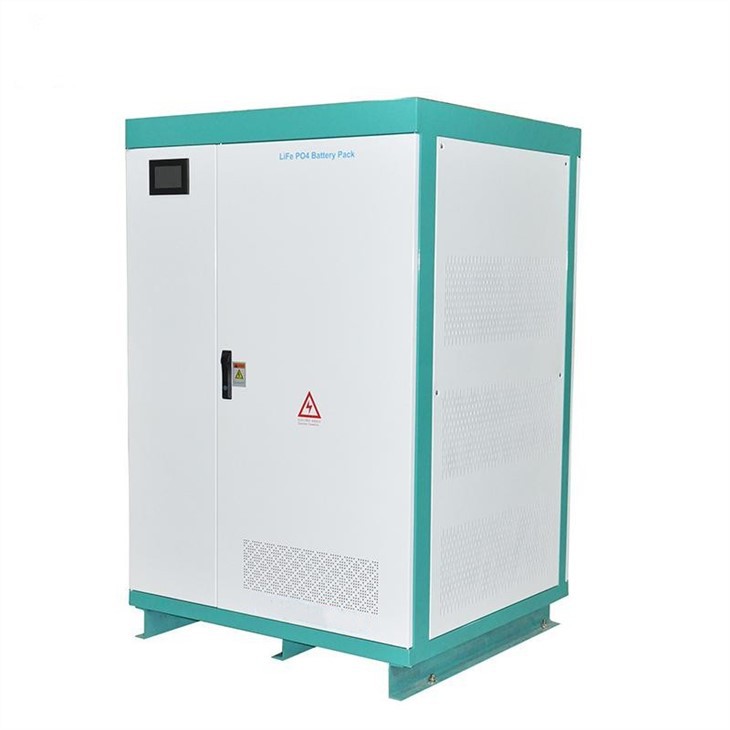

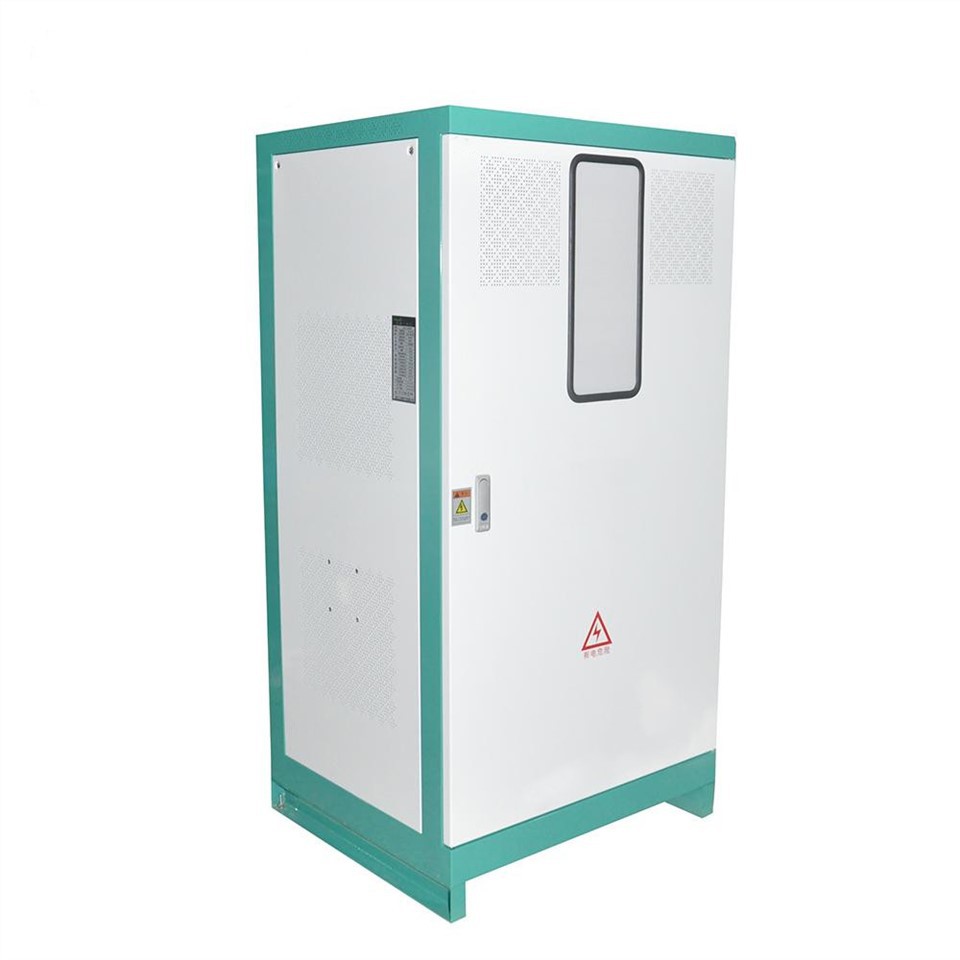

Lithium Iron Energy Storage Battery System
378V280Ah Lithium-ion Energy Storage Battery Pack
Energy Storage - the Missing Link in the Renewable Energy System
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Modular Blade Design The modular blade design of the Battery Packs allows for flexible applications. With our modular system. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Unlock New Business Value with Flexible Modular Battery Solutions
(Energy Storage – COMBINE’s Reservoir Solutions)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight Lbs (kg) | ||
Length | Width | Height | ||||
1P118S | INCLUDED | IP54 | 47.2in (1200) | 33.4in (850) | 47.2in (1200) | 2090 (960) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Input Voltage | Inverter | Self |
377.6V | 280AH | YES | 105.73 KWH | AC | >85% | <1% per Month |

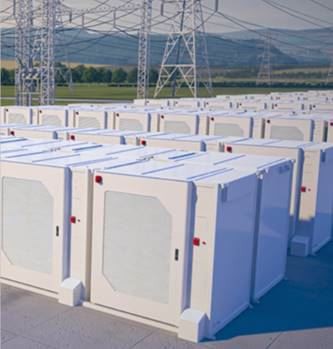

Benefits of energy storage
Combine’s Reservoir energy storage solutions integrate across the grid to help our customers do more than they ever thought possible.
Safe Our first priority is, and will always be, safety. All our products are designed with your safety in mind - thoroughly verified and certified for safe operation. We have a completely redundant safety system in the BMS, including electronically controlled circuit breakers, thorough control in the design and manufacturing of every system component to ensure safe operation. We also have advanced solutions for propagation prevention. The battery is protected during transportation, installation and use, even in the toughest conditions. Combine is safe every step of the way. |  |
Simple
In a few simple steps you are good to go. Advanced technology made super easy to use, allowing you control without obstacles. Easy installation and zero maintenance – just connect the cables and turn on power. Our products are plug-and-play compatible with existing power systems. Configuration and testing are automatic. Combine’s solutions are designed to support a wide range of deployment configurations and integration partners, with both low and high voltage battery systems.
Smart Thanks to the embedded intelligence of the lithium batteries, you will always know the state of charge (available capacity in real time) and the state of health (available life for optimal planning and usage). With a remote management system, the lithium power backup solution is maintenance free and you are in full control. You can also manage your on-site climate control system based on the internal temperature of the lithium battery or you can choose to shut down non-prioritized loads. All in all, with the smart information already embedded in the lithium battery you can gain control, plan better, save cost, and reduce the environmental impact. |  |
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

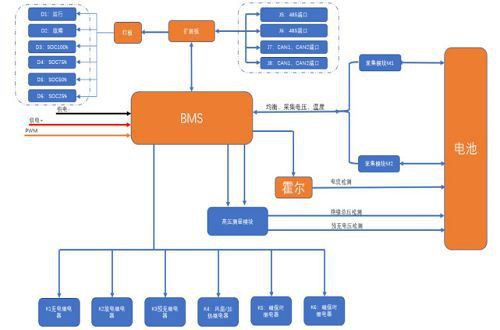

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: ● Accurate battery discharge indicator ● Device Error code (DEC) reporting ● Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
Cell/Module Thermal Simulation
|
|

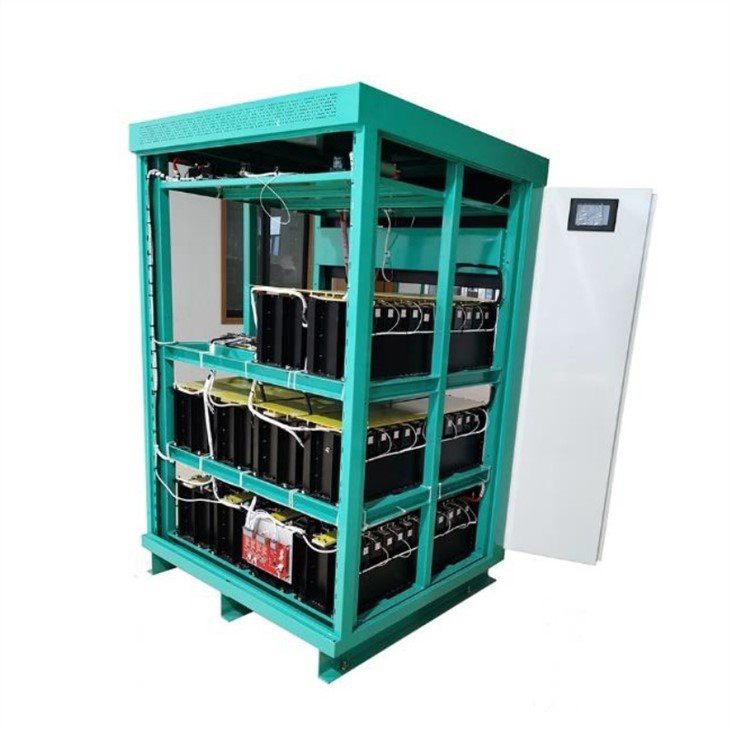

Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly
|
|
|
|
Your energy journey is unique
We’ll work with you to tailor an energy solution just for your business, increasing your sustainability goals and elevating your position as a leader in your industry.
Let’s Embrace a zero-emission future! Together.
Capacity & Cycle Life One of the most important benefits of Combine’s choice of lithium is the dramatic increase in energy density over current lead-acid battery solutions. Combine uses Lithium-Iron-Phosphate (LiFePO4) which has a specific energy of ~110 watt-hours per kilogram, compared to lead-acids ~40 watt-hours per kilogram. What does this mean? Our batteries can be ~1/3 the weight for similar amp-hour ratings. Speed & Efficiency Combine’s lithium batteries are fast. They can be fast charged completely and can handle ultra-fast charging up to 1C (a full charge in 1hour). Lead-acid can only be fast-charged up to 80% after which charging current drops dramatically. |  |
