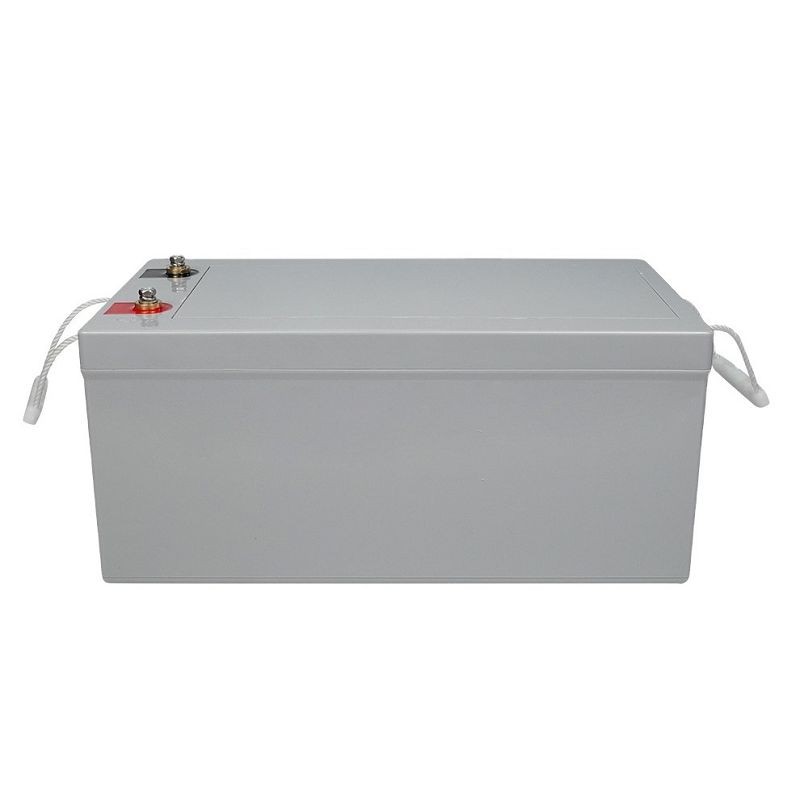

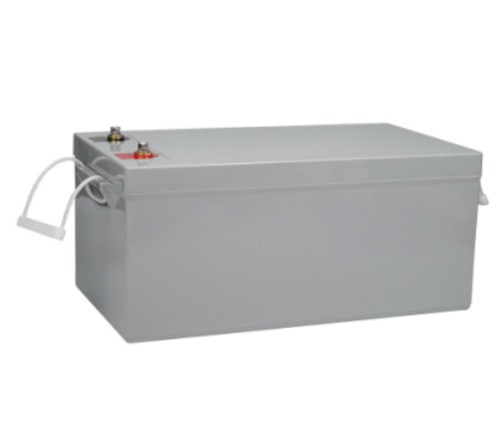

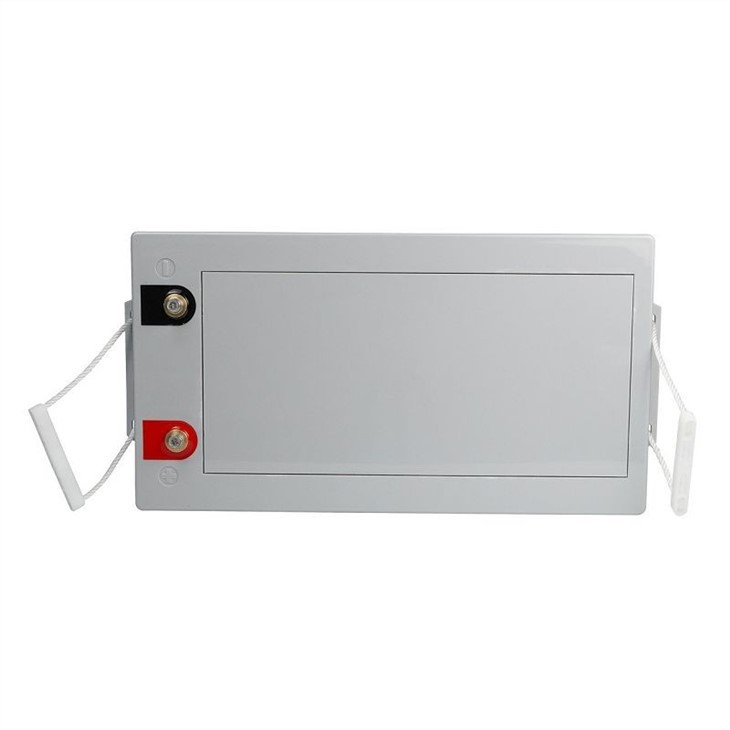

24V 50Ah Lithium-ion E-Bike Battery Pack
24V50Ah Lithium-ion E-Bike Battery Pack
Reliable Batteries for Electric Bike
|
|
|
|
Battery Management System BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Create a tailor-made energy-solution for you
(Battery Powered Electric Tractors)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight | ||
Length | Width | Height | ||||
1P8S | INCLUDED | IP65 | 12.2in (310) | 7.8in (200) | 7in (180) | 50.6 (23) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
25.6V | 50AH | YES | 1.28KWH | 1C | 1C | <1% per Month |
AT THE HEART OF OPERATIONS
Improper use and bad charging habits can significantly shorten the life of a scooter’s battery. Conversely, good habits can prolong its life and keep you on the road, trouble free, for years. Nearly all high-quality electric scooters run on lithium-ion (Li-ion) batteries, which power the scooter’s motor, lights, electric brakes, digital displays, controller, and other accessories. Lithium-ion batteries are powerful, efficient, and long-lasting. They can be discharged and recharged many times without losing their storage capacity.
LITHIUM-ION CELLS
Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

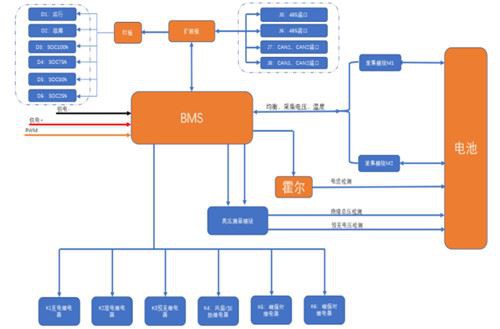

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: • Accurate battery discharge indicator • Device Error code (DEC) reporting • Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
COMBINE offers the technical know-how necessary to service any requirement in electronic mobility. We produce customer specified electronics, development of a suitable rechargeable battery pack with long runtime (also for high-current applications), battery-management and engine control. We supply the complete solution to meet each client’s individual needs.
Cell/Module Thermal Simulation
|
|
Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.
|
|
|
|
Experience the Difference
E-mobility based on rechargeable battery technology has become increasingly important. As the world looks increasingly towards renewable energies, electric drive systems can replace conventional drives in many cases.
COMBINE has recognized this trend early and supplied the technology to leading manufacturers of many different devices and vehicles for years.
Over this short period of time we have been instrumental in helping many different producers of battery powered drive systems to achieve success.

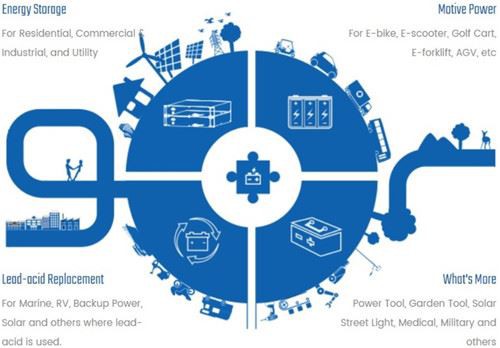

You can find COMBINE technology in many applications, including:
● E-Bike
● Golf Caddy
● E-Kart
● Go-Kart
● Electric Wheelchair
● Sweeper and suction engine
● Industrial Vehicles
● Energy Storage System
If you are looking for Electronic mobility Battery Solution, contact COMBINE now!
