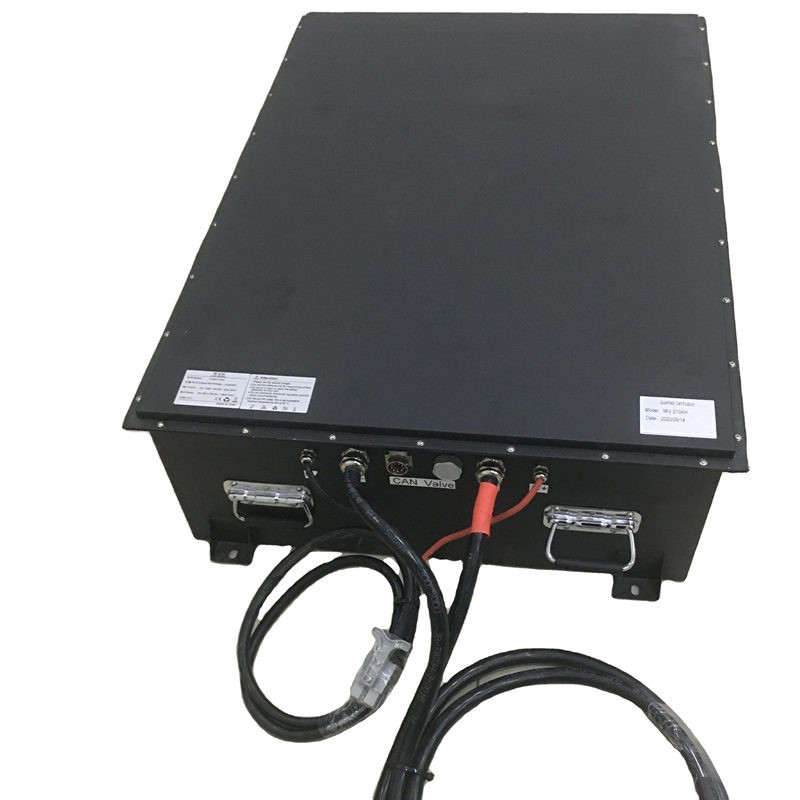

96V210Ah Battery Pack for Golfcart
96V210Ah Battery pack for Golfcart
New Energy, New Solutions!
|
|
|
|
No More Water Maintenance Simplify your operations by no longer needing to manage watering schedules for your batteries. This is not only a huge time saver, but allows operators to focus on moving product rather than maintaining battery maintenance schedules. | Longer Lasting The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings. | Lower Overal Costs Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more. | Fast Charge On Demand All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work. |
Trusted by the Golf Cart Community
(Lithium-ion Battery Pack designed for use in Golf Cart)
PHYSICAL SPECIFICATIONS | ||||||
Group Size | BMS | Protect | Dimensions Inches (mm) | Weight Lbs (kg) | ||
Length | Width | Height | ||||
1P30S | INCLUDED | IP67 | 24.4 (620) | 15.7 (400) | 10.2 (260) | 231 (105) |
ELECTRICAL SPECIFICATIONS | ||||||
Nominal | Nominal | Module | Energy | Continuous Charge | Continuous Discharge | Self |
96V | 210AH | YES | 20.16KWH | 1C | 1C | <1% per Month |
SWITCH TO A HIGHER-PERFORMING AND LONGER-LASTING
Golf Car Battery
We offer several different types of lithium batteries for golf carts, varying in power outputs and voltages. A 50Ah battery will travel approximately 30 to 35 miles on a single charge, while a 105ah battery can go approximately 60 to 65 miles and a 160ah battery can reach approximately up to 95 to 100 miles on just one charge. Our built-in battery protections include but are not limited to discharge, overcharge, overheating, and short-circuit protection, fire detection systems, and anti-collision. Our lithium batteries are also easy to install – simply remove the lead-acid batteries and connect the lithium battery in their place, a process that takes only about an hour or less. Along with the battery itself, the heavy duty lithium battery charger is included in the battery kit as well.
If you have any questions regarding our golf cart battery lithium or choosing which type of battery is right for you, feel free to contact us !
ADVANCED LITHIUM-ION TECHNOLOGY ● Higher sustained power, with no voltage drop-off ● Fast charge ● Safe – No acid spills or combustible gas emissions ● Over 3500 cycles at 80% depth of discharge ● Up to 45% lower cost – fewer replacements needed ● No battery swapping required for multi-shift applications ● Maintenance Free ● Typically uses 40% less energy |  |

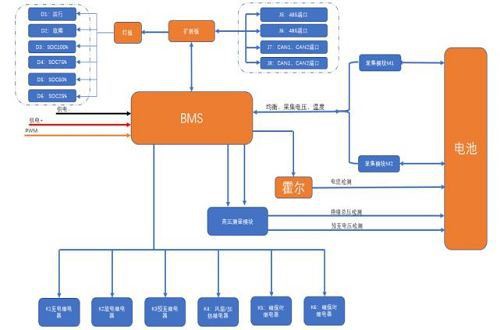

 | BATTERY MANAGEMENT SYSTEM (BMS) The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built! |
FULL INTEGRATION Our Forklift Battery Packs are capable of integrating with different equipment over CAN. This provides a seamless transition for operators when switching to lithium-ion. Integration features include: ● Accurate battery discharge indicator ● Device Error code (DEC) reporting ● Early warning for safe shutdown |  |
OPTIONS
Integrated heaters for cold temperature applications
|
|
Module assemble line | Pack assemble line |
|
|
Salt-mist corrosion Testing Machine | Explosion-proof Machine |
|
|
Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.
