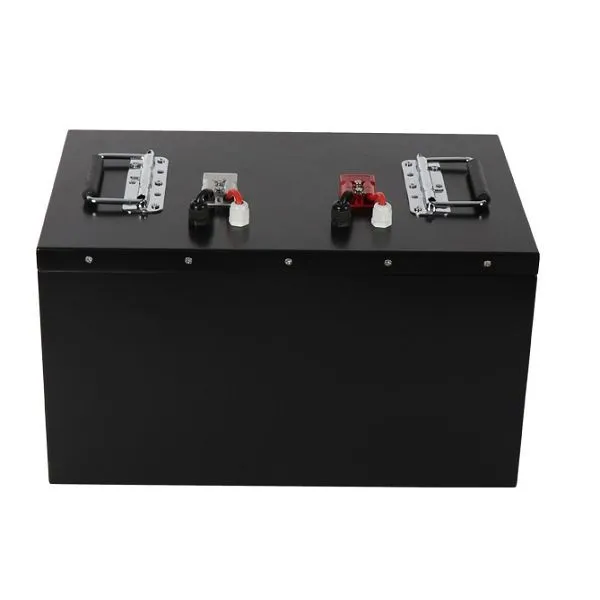

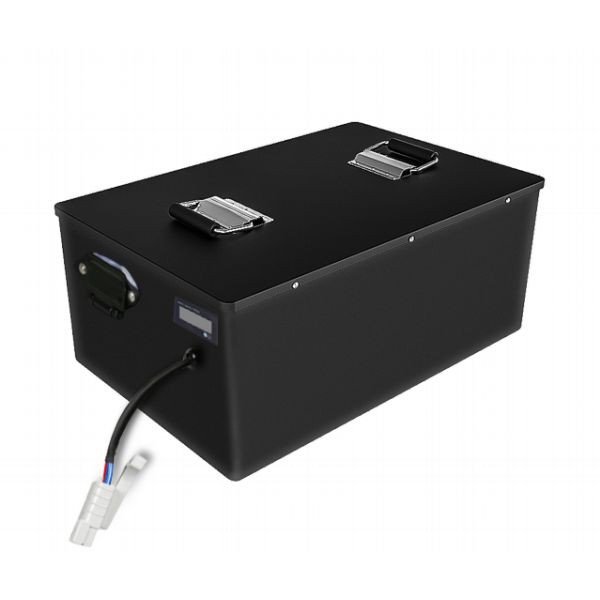

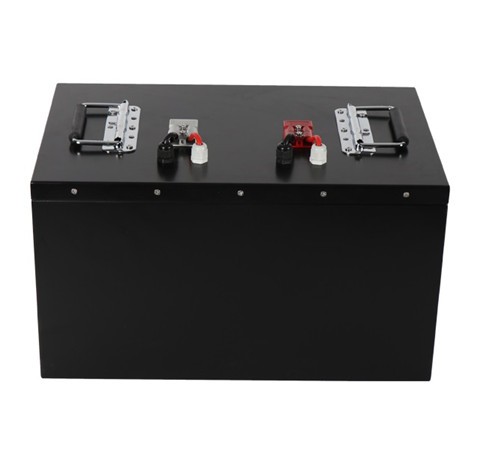

72V 60Ah Lithium Motorcycle Battery
5

72V 60Ah Lithium Motorcycle Battery

Name: 72V 60Ah Lithium Motorcycle Battery
Brand: Combine
SKU: 170837841

COMBINE offers the technical know-how necessary to service any requirement in electronic mobility. We produce customer specified electronics, development of a suitable rechargeable battery pack with long runtime (also for high-current applications), battery-management and engine control.

Send Inquiry

Product Introduction

72V60Ah Lithium Motorcycle Battery

(Reliable Batteries for Electric Motorcycle)

Battery Management System

BMS integral to the Battery Pack ensures optimal battery performance for longer run times between charge and during operations. BMS extends the lifespan of the battery, and reduces speeds at low states of charge.

Longer Lasting

The flat discharge curve and high sustained voltage mean forklifts run faster on each charge, without getting sluggish. The overall battery life lasts 2x than that of lead-acid alternatives, thus providing significant financial savings.

Lower Overal Costs

Lithium from COMBINE Power reduces costs in multiple ways, including lower energy bills to run your equipment, battery packs that last 5 - 10 years instead of 1 - 3 years, improved productivity by not having to regularly swap batteries, and more.

Fast Charge On Demand

All you need is one battery per truck, even with 2- or 3-shift operations! No more battery rooms. No ventilation needed while charging. Quick opportunity charge means your crew can simply plug in the equipment during breaks, then get back to work.

Create a tailor-made energy-solution for you

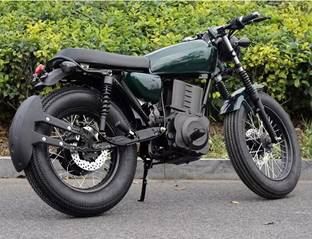

(Battery Powered Electric Motorcycle)

PHYSICAL SPECIFICATIONS
Group Size	BMS	Protect	Dimensions Inches (mm)			Weight Lbs (kg)
Group Size	BMS	Protect	Length	Width	Height	Weight Lbs (kg)
2P23S	INCLUDED	IP65	10.2in (260)	7in (180)	10.8in (276)	176 (80)
ELECTRICAL SPECIFICATIONS
Nominal Voltage	Nominal Capacity	Module	Energy	Continuous Charge Current	Continuous Discharge Current	Self Discharge
73.6V	60AH	YES	4.416KWH	1C	1C	<1% per Month

AT THE HEART OF OPERATIONS

LITHIUM-ION CELLS

Combine has optimized the safety and performance of lithium-ion for material handling equipment and other industrial applications. Our cells are UL/CE tested, and use one of the safest and most stable lithium chemistry available.

ADVANCED LITHIUM-ION TECHNOLOGY

● Higher sustained power, with no voltage drop-off

● Fast charge

● Safe – No acid spills or combustible gas emissions

● Over 3500 cycles at 80% depth of discharge

● Up to 45% lower cost – fewer replacements needed

● No battery swapping required for multi-shift applications

● Maintenance Free

● Typically uses 40% less energy

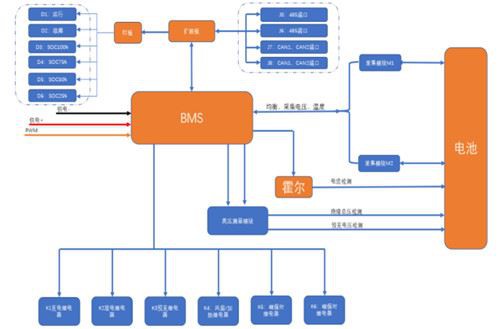

BATTERY MANAGEMENT SYSTEM (BMS)

The integral BMS was designed and developed in-house, assuring a fully optimized solution for demanding material handling applications. The BMS software ensures the battery provides peak performance at all times when in operation (even at low charge levels), delivers longer run times between charges, and maximizes the total battery lifespan. All Power batteries are Solid Built!

FULL INTEGRATION

Our Forklift Battery Packs are capable of integrating with

different equipment over CAN. This provides a seamless

transition for operators when switching to lithium-ion.

Integration features include:

• Accurate battery discharge indicator

• Device Error code (DEC) reporting

• Early warning for safe shutdown

OPTIONS

Integrated heaters for cold temperature applications

_06


Module assemble line	Pack assemble line

image040(001)


Salt-mist corrosion Testing Machine	Explosion-proof Machine

Lab-6(001)

Lab-7(001)

Combine's Battery Packs are 100% inspected before delivery include but not limited to Battery Capacity, Pressure Difference, Temperature Difference and Temperature rise. The test could confirm function of the battery, battery welding conditions, connection between the cells and BMS function.

Cell/Module Thermal Simulation

Lab-8

image055(001)

Series and parallel mode combined into the lithium battery PACK, the voltage and capacity of lithium battery PACK can be combined accordingly.

Experience the Difference

Electrification is coming to the construction industry in the form of battery operated Tractors, Embrace a zero-emission future!

E-mobility based on rechargeable battery technology has become increasingly important. As the world looks increasingly towards renewable energies, electric drive systems can replace conventional drives in many cases.

COMBINE has recognized this trend early and supplied the technology to leading manufacturers of many different devices and vehicles for years.

Over this short period of time we have been instrumental in helping many different producers of battery powered drive systems to achieve success.
